Auto Lock Quick Hitch

1.5-120T Excavators

Compliant with the Standards;

  • D & J Auto Lock Quick Hitch is compliant to AS4772-2008.
  • NSW WorkCover- Position Paper-Supplying, installing and using quick hitches on excavators or backhoes.

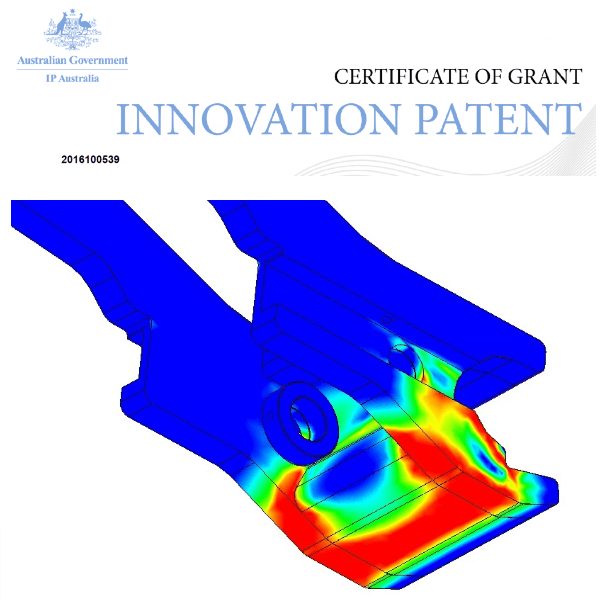

  • Patent pending design (Patent # 2016100539).
  • D & J Auto Lock Quick Hitch is designed and manufactured in Australia.
  • Manufactured using extra high strength steel (700MPa) is used in the structure of the D&J Auto Lock Quick Hitch.
Product Brochures:
D&J Auto Lock Quick Hitch
D&J Tilt Auto Lock Quick Hitch

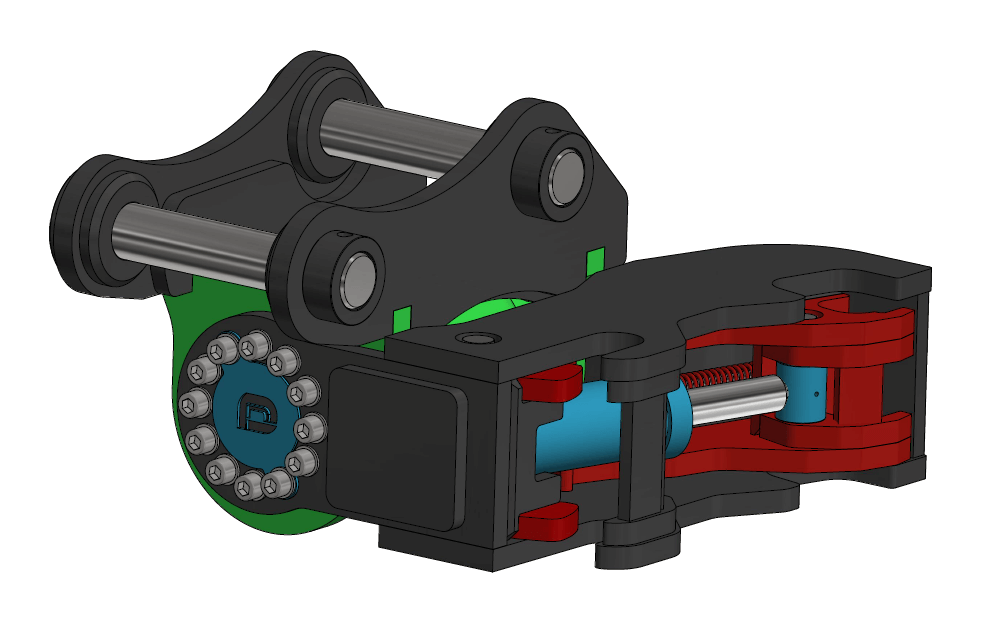

How it works

Most auto lock quick hitches available in the market fail due to jamming, wear, ceasing and fatigue of moving parts under heavy duty conditions.

D&J innovative mechanism does not utilize any moving parts for the rear lock. This mechanism utilizes the shape of the rear hook to act as a secondary lock. Therefore, it is simple and reliable which guarantee you a hassle-free coupler.



Advantages

  • Less moving parts – less maintenance
  • Lower profile – higher breakout force
  • Light weight – higher efficiency
  • Fully welded structure (Bis-80 Aussie steel)- heavy duty use
  • Multicoupler – cater different pin centre attachments
  • Standards hydraulic supply – easy installation
  • Automatic double locking – compliant with the standards



Rear side view of the Auto Lock Quick Hitch

The AS1418.8 certified lifting eye gives you the confidence and compliance when you are attempting to lift freely suspended load using this Auto Lock Quick Hitch. D&J Auto Lock Quick Hitch is compliant to AS4772-2008, Australian Standards. Also fulfil requirements of NSW WorkCover- Position Paper-Supplying, installing and using quick hitches on excavators or backhoes.

D&J Auto Lock Quick Hitch is designed and manufactured in Australia.

700MPa extra high strength steel (BIS-80 equivalent) is used in the D&J Auto Lock Quick Hitch structure.
